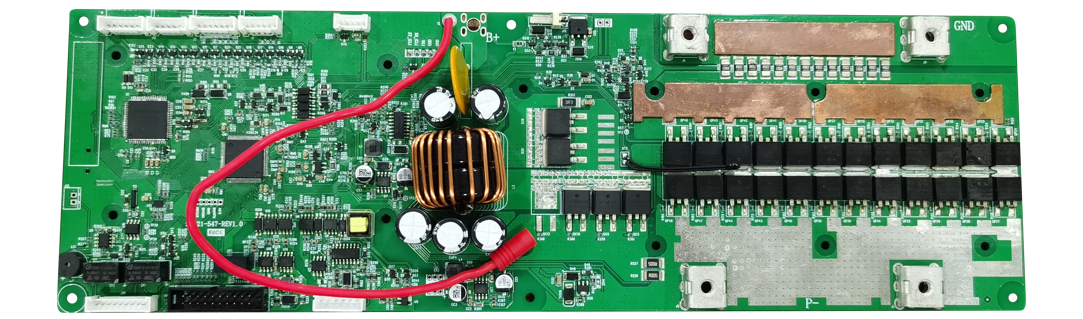

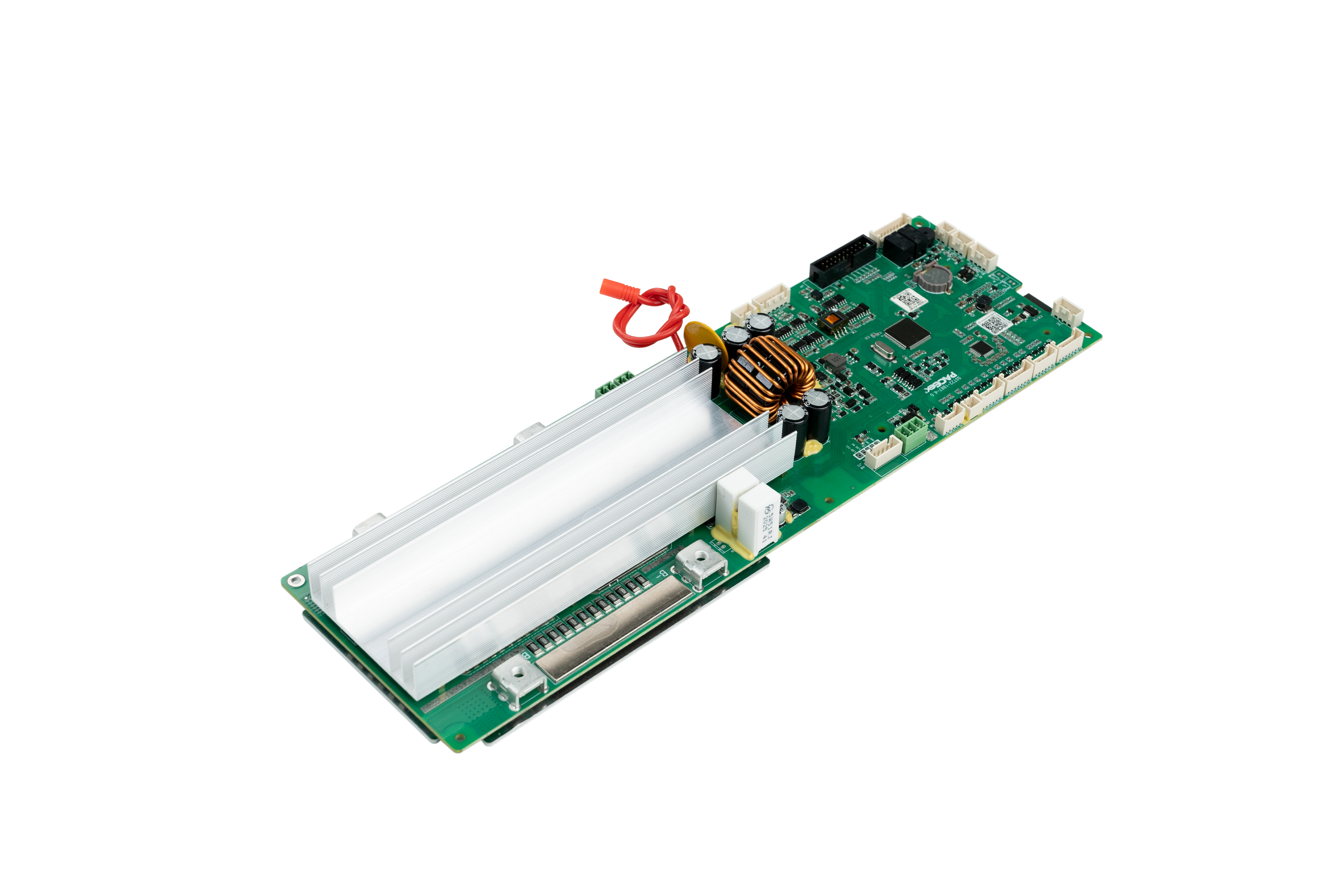

Household energy storage BMS(P16S200A)

Household energy storage BMS(P16S200A)

Product InformationProduct modelP16S200A-PC1547Applicable battery pack capacity200AHAcquisition accuracyVoltage accuracy:10mV...

Product Information

Product model

P16S200A-PC1547

Applicable battery pack capacity

200AH

Acquisition accuracy

Voltage accuracy:±10mV;

Current accuracy:±2%

SOC accuracy:±5%

Electricity meter function

SOC estimation

Applicable battery type/number of   strings

LiFePO4/16S

ON/OFF function

Yes

Product sizeMM

350mm×110mm

Other functions

Intelligent balance, pre-amp circuit, reverse connection protection,   short circuit protection

Basic function

500 storage, charging current limiting 20A, 2-way dry contact, English   display, GPS positioning function, buzzer, LED status indication

Application

Household energy storage, photovoltaic energy storage, street lamp power   supply, monitoring power supply

Communication protocol

RS485/RS232/CAN


Product Advantages

1.High stability                      2.High-precision detection                3.Adjustable overcurrent protection

4.Temperature protection       5.Overvoltage protection                  6.A variety of sleep and wake-up methods
