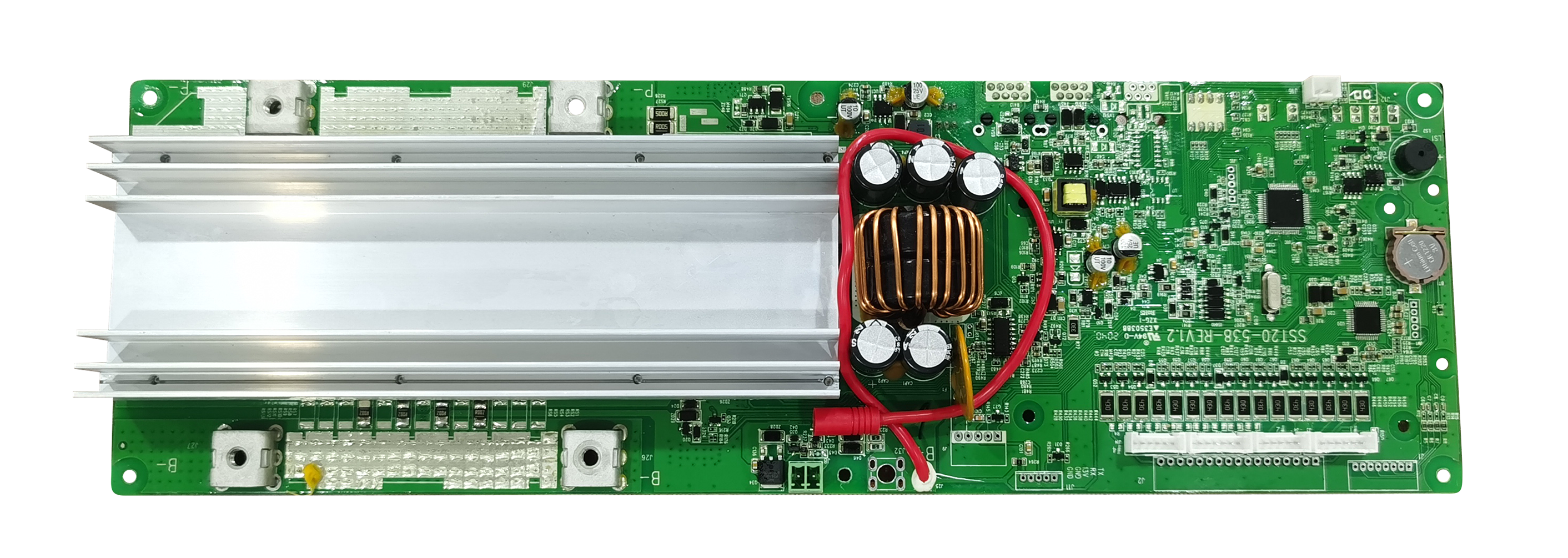

Household energy storage BMS(P16S150A)

Household energy storage BMS(P16S150A)

Product InformationProduct modelP16S150A-PC15480Applicable battery pack capacity150AHAcquisition accuracyVoltage accuracy:10m...

Product Information

Product model

P16S150A-PC15480

Applicable battery pack capacity

150AH

Acquisition accuracy

Voltage accuracy:±10mV;

Current accuracy:±2%

SOC accuracy:±5%

Electricity meter function

SOC estimation

Applicable battery type/number of   strings

LiFePO4/16S

ON/OFF function

No

Product sizeMM

350mm×110mm

Other functions

Intelligent equalization, pre-amp circuit

Basic function

400 storage, charging current limiting 20A, 2-way dry contact, buzzer,   LED status indication, short circuit protection

Application

Household energy storage, photovoltaic energy storage, street lamp power   supply, monitoring power supply

Communication protocol

RS485/RS232/CAN


Product Advantages

1.High stability                      2.High-precision detection                3.Adjustable overcurrent protection

4.Temperature protection       5.Overvoltage protection                  6.A variety of sleep and wake-up methods

Application Area

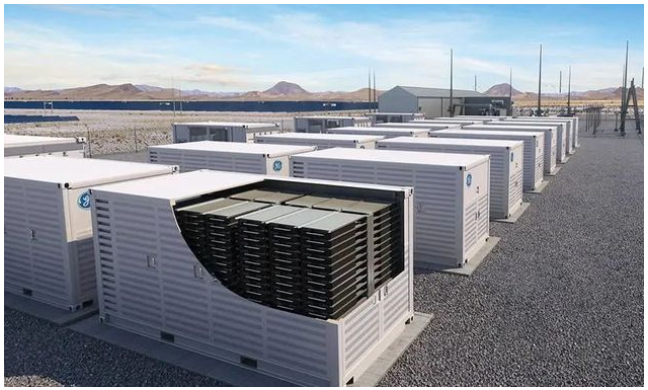

Household energy storage BMS(P16S150A)(图1)
