Household energy storage BMS(P16S100A)

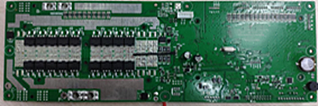

Household energy storage BMS(P16S100A)

Product InformationProduct modelP16S100A-PC9A11Applicable battery pack capacity100AHAcquisition accuracyVoltage accuracy:10mV...

Product Information

Product model

P16S100A-PC9A11

Applicable battery pack capacity

100AH

Acquisition accuracy

Voltage accuracy:±10mV

Current accuracy:±2%

SOC accuracy:±5%

Electricity meter function

SOC estimation

Applicable battery type/number of   strings

LiFePO4/16S

ON/OFF function

No

Product sizeMM

100mm×300mm

Other functions

Intelligent balance, pre-amp circuit, pre-charge function, reverse   connection protection, short-circuit protection

Basic function

10000 storage, charging current limiting 10A, English display screen,   2-way dry contact, buzzer, LED status indication, dual protection, supporting   16 parallel machines

Application

Household energy storage, photovoltaic energy storage, street lamp power   supply, monitoring power supply

Communication protocol

RS485/RS232/CAN


Product Advantages

1.High stability                      2.High-precision detection                3.Adjustable overcurrent protection

4.Temperature protection       5.Overvoltage protection                  6.A variety of sleep and wake-up methods

Application Area

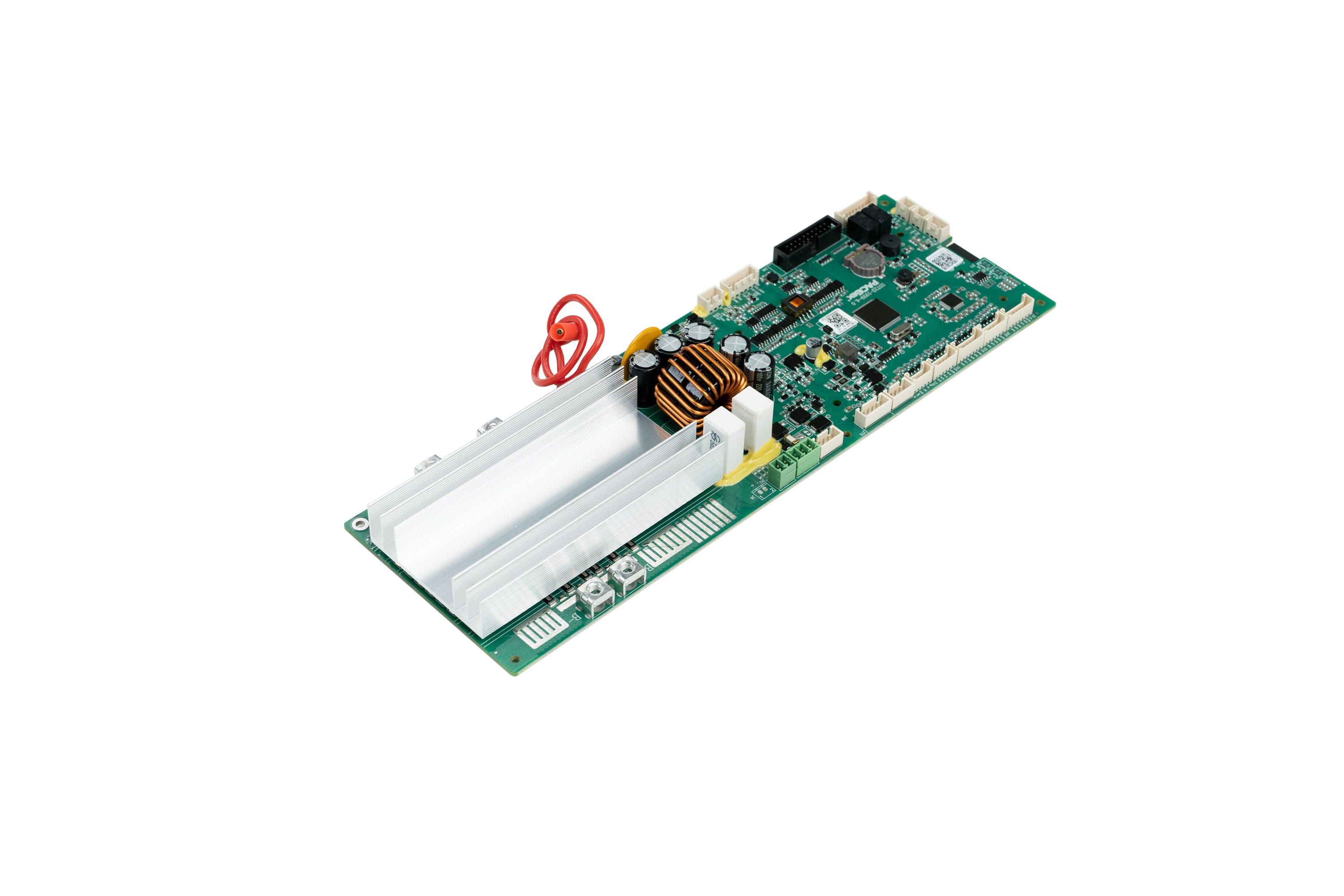

Household energy storage BMS(P16S100A)(图1)
