Household energy storage BMS(P16S120A)

Household energy storage BMS(P16S120A)

Product InformationProduct modelP16S120A-PC0A300Applicable battery pack capacity100AHAcquisition accuracyVoltage accuracy:10m...

Product Information

Product model

P16S120A-PC0A300

Applicable battery pack capacity

120AH

Acquisition accuracy

Voltage accuracy:±10mV

Current accuracy:±2%

SOC accuracy:±5%

Electricity meter function

SOC estimation

Applicable battery type/number of   strings

LiFePO4/16S

ON/OFF function

Yes

Product sizeMM

100mm×300mm

Other functions

Intelligent  balance, pre-amp   circuit, 3 dry contacts, short circuit protection

Basic function

400 storage , charging current limiting 10A, English display screen,   buzzer, LED status indication

Application

Household energy storage, photovoltaic energy storage, street lamp power   supply, monitoring power supply

Communication protocol

RS485/RS232/CAN


Product Advantages

1.High stability                      2.High-precision detection                3.Adjustable overcurrent protection

4.Temperature protection       5.Overvoltage protection                  6.A variety of sleep and wake-up methods

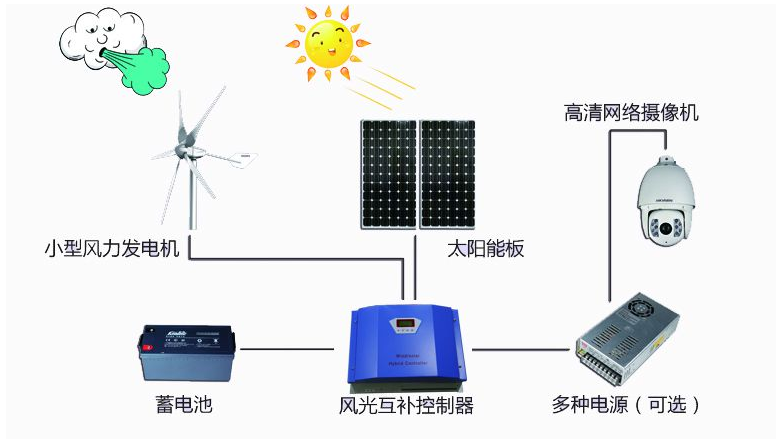

Application Area

Household energy storage BMS(P16S120A)(图1)
