Household energy storage BMS(P15S50A)

Household energy storage BMS(P15S50A)

Product InformationProduct modelP15S50A-PC15740Applicable battery pack capacity50AHAcquisition accuracyVoltage accuracy:10mV;...

Product Information

Product model

P15S50A-PC15740

Applicable battery pack capacity

50AH

Acquisition accuracy

Voltage accuracy:±10mV

Current accuracy:±2%

SOC accuracy:±5%

Electricity meter function

SOC estimation

Applicable battery type/number of   strings

LiFePO4/15S

ON/OFF function

Yes

Product sizeMM

80mm×263mm

Other functions

Intelligent  balance, pre-amp   circuit, 2 dry contacts, short circuit protection

Basic function

400 storage, charging current limiting 10A, reverse connection   protection, buzzer, LED status indication, dual protection, supporting 16   parallel machines

Application

Household energy storage, photovoltaic energy storage, street lamp power   supply, monitoring power supply

Communication protocol

RS485/RS232/CAN


Product Advantages

1.High stability                      2.High-precision detection                3.Adjustable overcurrent protection

4.Temperature protection       5.Overvoltage protection                  6.A variety of sleep and wake-up methods

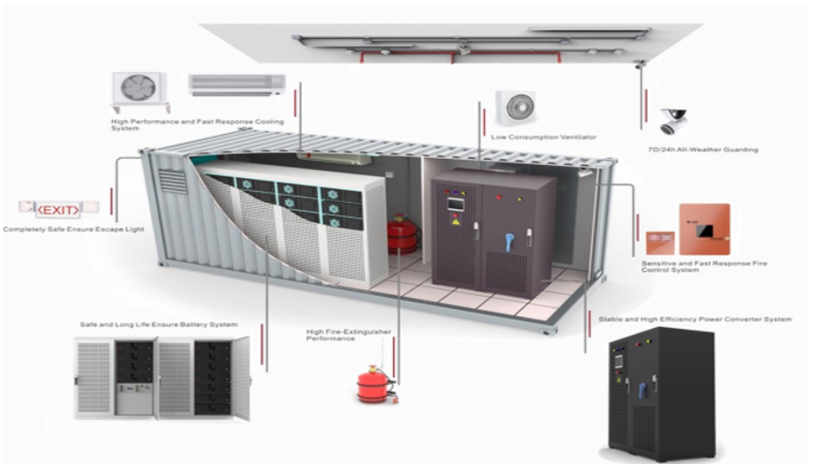

Application Area

Household energy storage BMS(P15S50A)(图1)
