Base Station Power

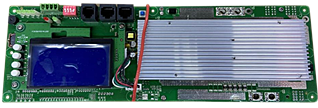

Overseas base station BMS(P15S100A)

Overseas base station BMS(P15S100A)

Product InformationProduct modelP15S100A-PC1500Applicable battery pack capacity100AHAcquisition accuracyVoltage accuracy:10mV...

Product Information

Product model

P15S100A-PC1500

Applicable battery pack capacity

100AH

Acquisition accuracy

Voltage accuracy:±10mV;

Current accuracy:±2%

SOC accuracy:±5%

Electricity meter function

SOC estimation

Applicable battery type/number of   strings

LiFePO4/15S

ON/OFF function

No

Product sizeMM

100mm×300mm

Other functions

Intelligent balance, gyroscope anti-theft function, 2 dry contacts,   reverse connection protection

Basic function

Storage 400, charging current limiting 20A heating film function, LED   status indication

Application

Communication base station

Communication protocol

RS485/RS232


Product Advantages

1.High stability                                                                                        2.Remote monitoring

3.GPS positioning                                                                                    4. Overvoltage protection

5.Temperature protection                                                                         6.High-precision detection

7.A variety of sleep and wake-up methods                                                 8.Adjustable overcurrent protection

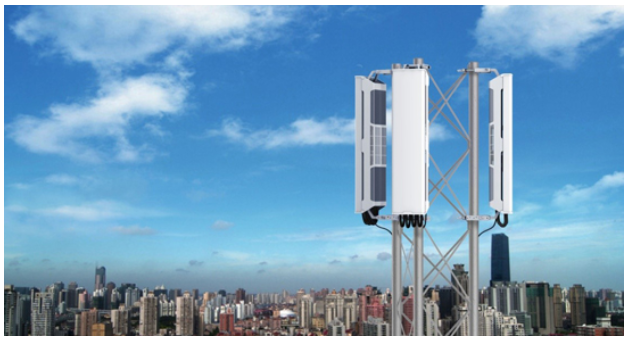

Application Area

Overseas base station BMS(P15S100A)(图1)
