Base Station Power

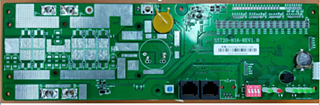

Domestic base station BMS(P16S100A)

Domestic base station BMS(P16S100A)

Product InformationProduct modelP16S100A-PC0166Applicable battery pack capacity100AHAcquisition accuracyVoltage accuracy:10mV...

Product Information

Product model

P16S100A-PC0166

Applicable battery pack capacity

100AH

Acquisition accuracy

Voltage accuracy:±10mV;

Current accuracy:±2%

SOC accuracy:±5%

Electricity meter function

SOC estimation

Applicable battery type/number of   strings

LiFePO4/16S

ON/OFF function

No

Product sizeMM

87mm×280mm

Other functions

Intelligent balance, with GPS positioning function, 2 dry contacts,   reverse connection protection

Basic function

Storage 500, charging current limiting 10A, heating film function, LED   status indication

Application

Communication base station

Communication protocol

RS485


Product Advantages

1.High stability                                                                              2.Remote monitoring

3.GPS positioning                                                                          4. Overvoltage protection

5.Temperature protection                                                               6.High-precision detection

7.A variety of sleep and wake-up methods                                       8.Adjustable overcurrent protection

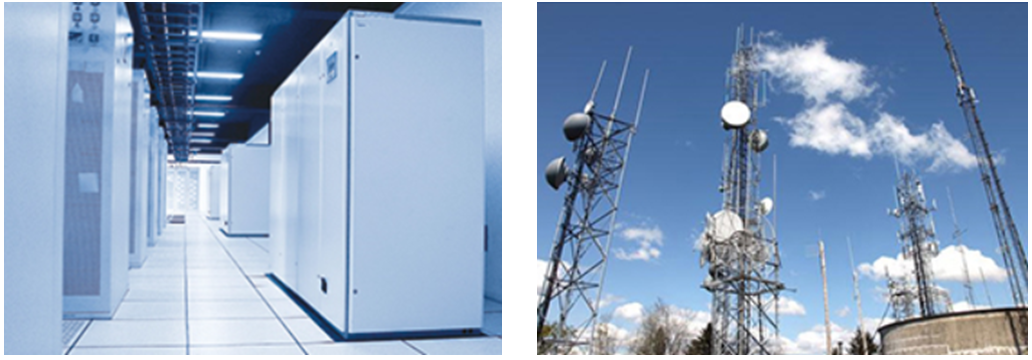

Application Area

Domestic base station BMS(P16S100A)(图1)
